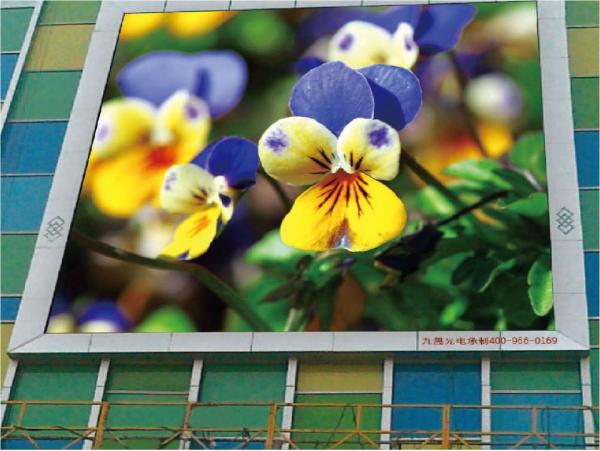

Shopping Mall full color outdoor P10 advertising wall led screen
Features
1. Bright color, high contrast, good consistency and high
brightness to keep the high resolution of the video under the
sunlight.
2. Adopt CNC technology in high precision processing box body, the
whole screen flatness<0.2mm. Using connection frame steel
structure, installation and maintenance is very convenient.
3. Red LEDs were powered by 3.2V, blue and green LEDs were powered
by 3.8V, which make the screen work stable and prolong the life
span.
4. With PFC high-efficiency power supply, to ensure the screen can
be powered sustainable.
Application
Outdoor far viewing distance (10m-80m) Led Display has the ability
to play monitor videos and graphic information in real time. So it
can be widely used in large area such as transportation,
electricity, water conservancy, security, military conferences,
city management, radio and television industries etc.
Parameters
Name | Parameter |
Pixel Pitch(mm) | 10mm |
Physical Density | 10,000 |
LED Configuration | 1RGB |
LED type | SMD3535 |
Module Size | 320×160 |
Module Resolution | 32×16 |
Module Power Consumption | 30W |
Driving Mode | Constant Current IC |
Scanning Mode | 1/2 |
Horizontal Viewing Angle | 140 |
Vertical Viewing Angle | 140 |
Brightness | 7500 |
Grey Scale | 16bit |
Refresh Rate | >1500 |
Cabinet Resolution | 96×96 |
Cabinet Max Consumption | 540 |
Cabinet Average Power Consumption | 190 |
Cabinet Size | 960×960 |
Cabinet Weight(kg) | 42 |
Cabinet Thickness | 100 |
Cabinet Material | Iron/Aluminum |
Color | >16.7 |
Input Voltage | AC 110V~220V +/-10% |
Frame Frequency | 50~60 |
Protection Level | IP65 |
Working Temperature(℃) | -40° -+65° |
Storage Humidity Range(RH) | 10%~90% |
Life Span(H) | 100,000 hours |
Product Information
Attention
In order to offer you a suitable solution, Please state general
info about your project.
1. Pixel pitch or view distance you need.
2. Dimension
3. Location of installation. ( eg, on poles, on wall of building,
ect)
4. Purpose. ( what are you going to do with the LED Screen)
FAQ
Why so many clients choose TOPLED?
Our led display has applied many countries in the world. Many
countries have our projects.
TOPLED's led display unique advantage
-------service
>Our engineer will be on your service. We can give you
technology support at any time.
We will be tracking your orders, from the pre-sale to the
after-sale and also serve you in this process.
--------price
Our price is based on the quantity, We have the basic price for one
square meter. For each additional 5 square meter will have a discount when beyond
10 square meter. What is more, free power and fan will send to you. The cabinet will be free.
--------Quality
Quality is our reputation, we have eight steps for our quality
inspection, From material to the finished goods. Quality is what we
pursuit.
Choose TOPLED, you choose the cost-effective , high quality and
good service.
