Brand Name : | TOPLED |
Model Number : | P10 |
Certification : | CE FCC ROHS |
Price : | Negotiation |
Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability : | 5000 Square Meter/Square Meters per Month |
Delivery Time : | 10-15 working days after got deposit |
High Brightness P10 Outdoor Full Color LED Screen SMD3535 7000
CD/Sqm
Specification:
Pixel Pitch | 10mm |
Pixel Density | 10000dots/sq.m |
Color Configuration | 1R1G1B |
LED Package | SMD3535 |
Display | Full Color |
Module Size | 320mm x 160mm |
Module Resolution | 32dots x 16dots |
Drive Duty | 1/2 Scan |
Standard Cabinet Size | 960*960mm |
Cabinet Weight | 45kg |
Led Chip | Nationstar / Kinglight |
Power | DC 5V, AC110V-220V |
Brightness | ≥6500 cd/sqm |
Viewing Distance | 10M |
Viewing Angle | H: 140°; V:140° |
Refresh Rate | >1920HZ, adjustable by software |
Power Input | AC110V/ 220V ±10%, 50HZ |
Max Power Consumption | 800W/cabinet |
Ave. Power Consumption | 300W/cabinet |
Temperature | -40℃~+65℃ |
MTBF | >10,000 Hours |
Life Span | >100,000 Hours |
Waterproof Level | IP65 |
Operating Humidity | 10%~90% RH |
Control Method | Synchronous, Asynchronous, |
Operating System | Win 98, Win2000, XP, Win7, Win8 |
Video Signal Mode | RF, S-Video, RGB, RGBHV, YUV, YC etc |
Certificate | CE, RoHS,ISO9001 |
1. Serviced can be done both from front and rear.
2. Auto fan and brightness.
3. Smart monitor and smart module.
4. Ingress Protection rated up to 65.
5. Thickness measures only 113mm and weighs only 10.5KG.
6. It can be either used as fixed or rental, indoor or outdoor and can be installed vertically or horizontally.

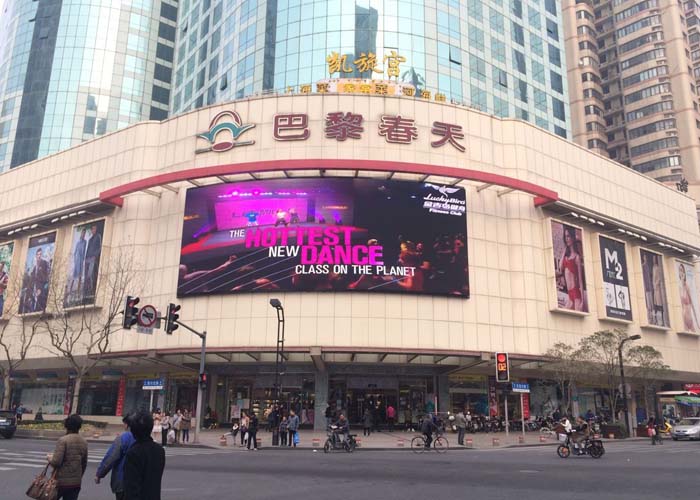

Project images:
![]() |
