    Excellent Reliability Large Led Display Panels , P6 Led Wall Screen Display Outdoor

    Ask Lasest Price
    Brand Name : TOPLED
    Model Number : P6
    Certification : CE FCC ROHS
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 5000 Square Meter/Square Meters per Month
    Delivery Time : 10-15 working days after got deposit
    • Product Details
    • Company Profile

    Excellent Reliability Large Led Display Panels , P6 Led Wall Screen Display Outdoor



    6MM 768*768 Cabinet Outdoor Led Billboard Advertising LED Display

    Specification:


    Pixel Pitch6mm
    Pixel Density27777dots/sq.m
    Color Configuration1R1G1B
    LED PackageSMD2727
    DisplayFull Color
    Module Size192mm x 192mm
    Module Resolution32dots x 32dots
    Drive Duty1/4 Scan
    Standard Cabinet Size768*768mm
    Cabinet Weight45kg
    Led ChipNationstar / Kinglight
    PowerDC 5V, AC110V-220V
    Brightness≥6800 cd/sqm
    Viewing Distance6M
    Viewing AngleH: 140°; V:140°
    Refresh Rate>1920HZ, adjustable by software
    Power InputAC110V/ 220V ±10%, 50HZ
    Max Power Consumption800W/cabinet
    Ave. Power Consumption280W/cabinet
    Temperature-40℃~+65℃
    MTBF>10,000 Hours
    Life Span>100,000 Hours
    Waterproof LevelIP65
    Operating Humidity10%~90% RH
    Control MethodSynchronous, Asynchronous,
    Operating SystemWin 98, Win2000, XP, Win7, Win8
    Video Signal ModeRF, S-Video, RGB, RGBHV, YUV, YC etc
    CertificateCE, RoHS,ISO9001

    Product Description:

    1) High reliability: using distributed scanning technology and module design technology that make higher reliability and stability.


    2)Steady and reliable system:with strong anti-interference ability and long service life that can continually work for over 24 hours, and it's easy to operate the system.


    3)Wide viewing angle: The horizontal and vertical viewing angles are so wide that it is suitable for wide horizon.


    4) Error detection and monitoring:it can monitor the inner temperature,voltage,cooling fans etc and error detection automatically.



    Why so many clients choose TOPLED?


    Our led display has applied many countries in the world. Many countries have our projects.
    TOPLED's led display unique advantage
    -------Service
    Our engineer will be on your service. We can give you technology support at any time.
    We will be tracking your orders, from the pre-sale to the after-sale and also serve you in this process.
    --------Price
    Our price is based on the quantity, We have the basic price for one square meter. For each additional 5 square meter will have a discount when beyond 10 square meter. What is more, free power and fan will send to you. The cabinet will be free.
    --------Quality
    Quality is our reputation, we have eight steps for our quality inspection, From material to the finished goods. Quality is what we pursuit.
    Choose TOPLED, you choose the cost-effective , high quality and good service.

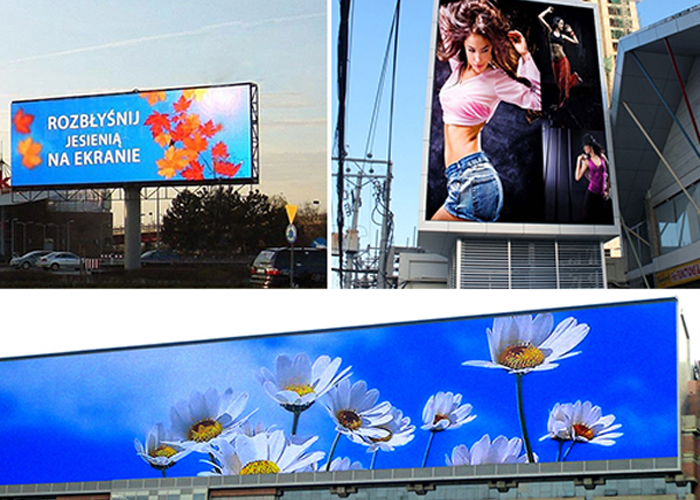

    Application:



    Quality Excellent Reliability Large Led Display Panels , P6 Led Wall Screen Display Outdoor for sale
